BD Z4 Trigger Wire is Fraying. Anyone Else?

Original Post
Geoff Fletcher · · South Lake Tahoe · Joined Dec 2018 · Points: 0

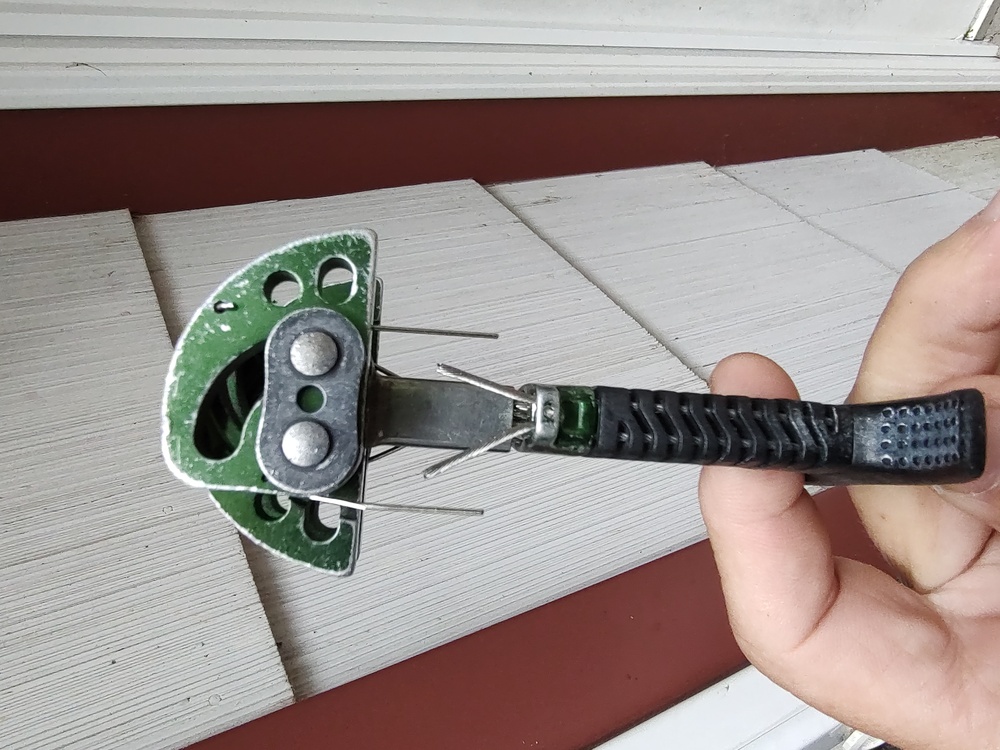

I have a few Z4 cams where some of wires that connects the trigger to the lobes is fraying/untwining. This hasn’t happened for my older C4s that have an extra casing around the wire. Has anyone else had this problem?

Austin Donisan · · San Mateo, CA · Joined May 2014 · Points: 669

Yes, there's been multiple threads about this and I've frayed the wires on ~4 or so. You can replace them with either thin fishing line or metal wire if you don't want to pay BD to repair them.

Corey Bringas · · Los Angeles, CA · Joined May 2018 · Points: 65

I have a rack of offset Z4s. Every one of them has experienced broken trigger wires. I’ve had to replace at least one side of each. I’m no longer supporting BD with my $$

Tanner James · · Sierras · Joined Dec 2019 · Points: 950

How do you repair them? Do you do it yourself or send them off? I have 4 cams currently out of order due to blown wires

Austin Donisan · · San Mateo, CA · Joined May 2014 · Points: 669

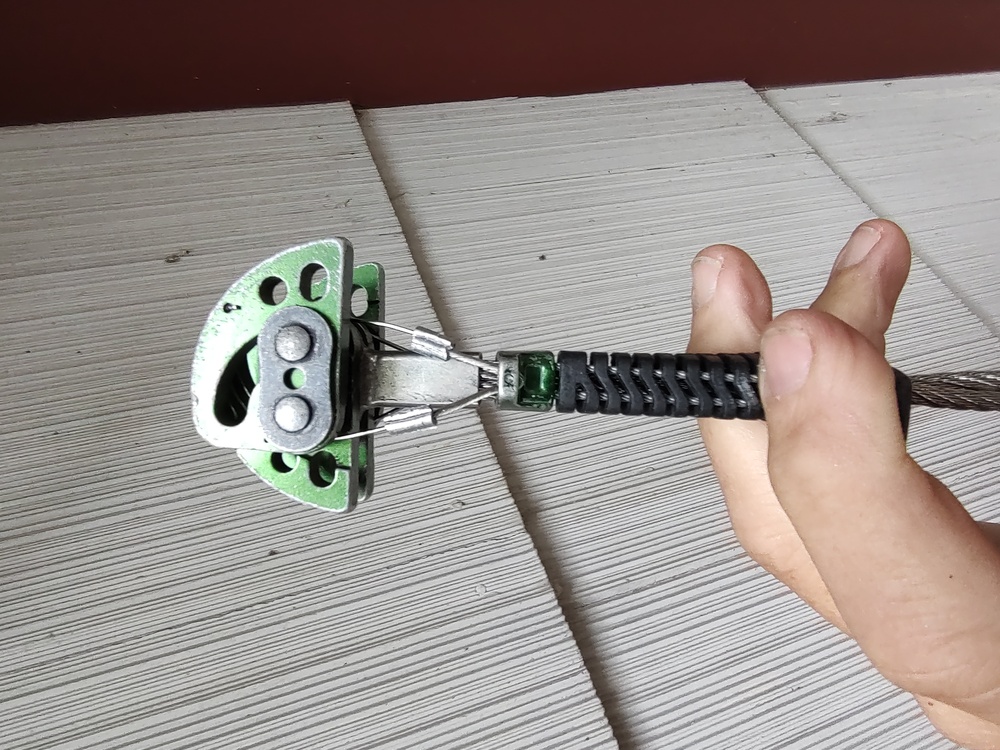

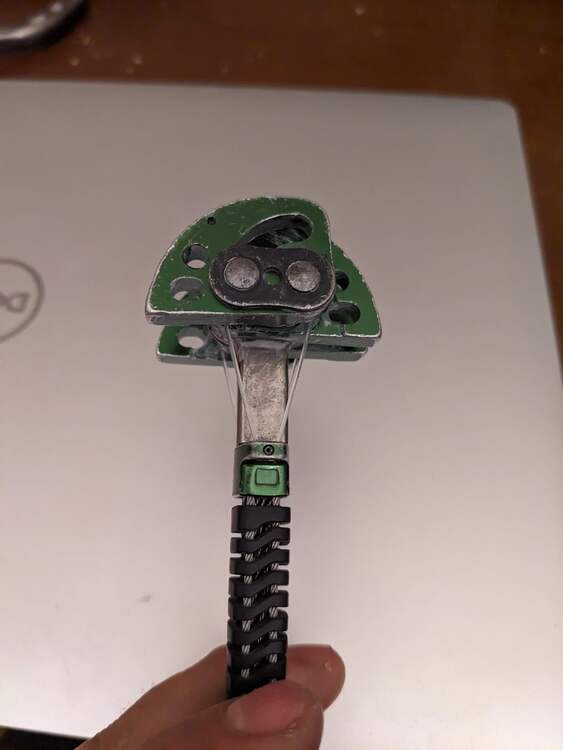

Fishing line has held up for me. It's finicky to melt the ends because you can't let it catch fire or it gets too weak, and you need to make a ball that's just the right size so it fits in the recess. C4s/Ultralights and way easier in comparison.

60lb /.76mm fits. I don't think a larger size would but I haven't tried. Only $5 for a lifetime supply on Amazon:
https://www.amazon.com/gp/product/B0036DS8KW/


Corey Bringas · · Los Angeles, CA · Joined May 2018 · Points: 65
Tanner James wrote:

How do you repair them? Do you do it yourself or send them off? I have 4 cams currently out of order due to blown wires

I've done both. Here in CA Nomads in Joshua tree does a great job. If they're not available I've fixed them with both 1.5mm cord or fishing line. The fishing line was for a super tiny offset. The 1.5mm holds up great.

Gunkiemike · · Unknown Hometown · Joined Jul 2009 · Points: 3,687

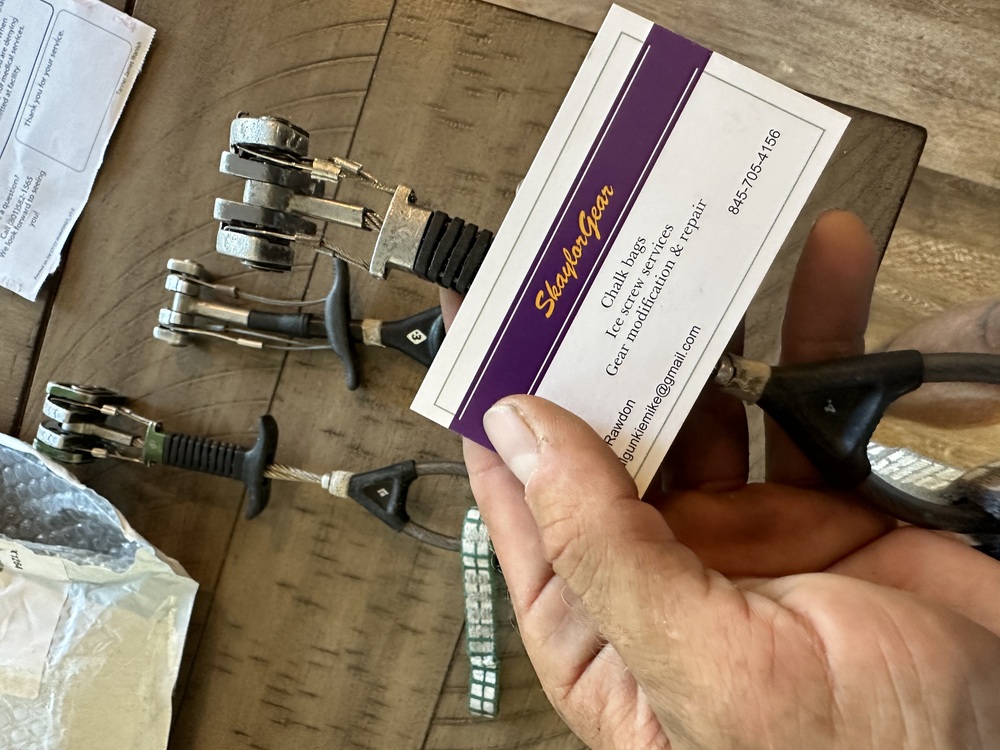

I've used the "Cam Doctor" kit for years to repair trigger wires on cams, but there's no room on the Z4s to get the crimping tool in there. What's more, the wires and cable that BD use are smaller than what comes in the kit.  BUT after much trial/error/searching I have obtained the tools and materials to do Z4s. No drilling required.  Hit me up if you want me to fix your cams. Only $6.

Tanner James · · Sierras · Joined Dec 2019 · Points: 950

Perfect work done Mike! Bump for a killer repair and super cheap prices. Thank you!
